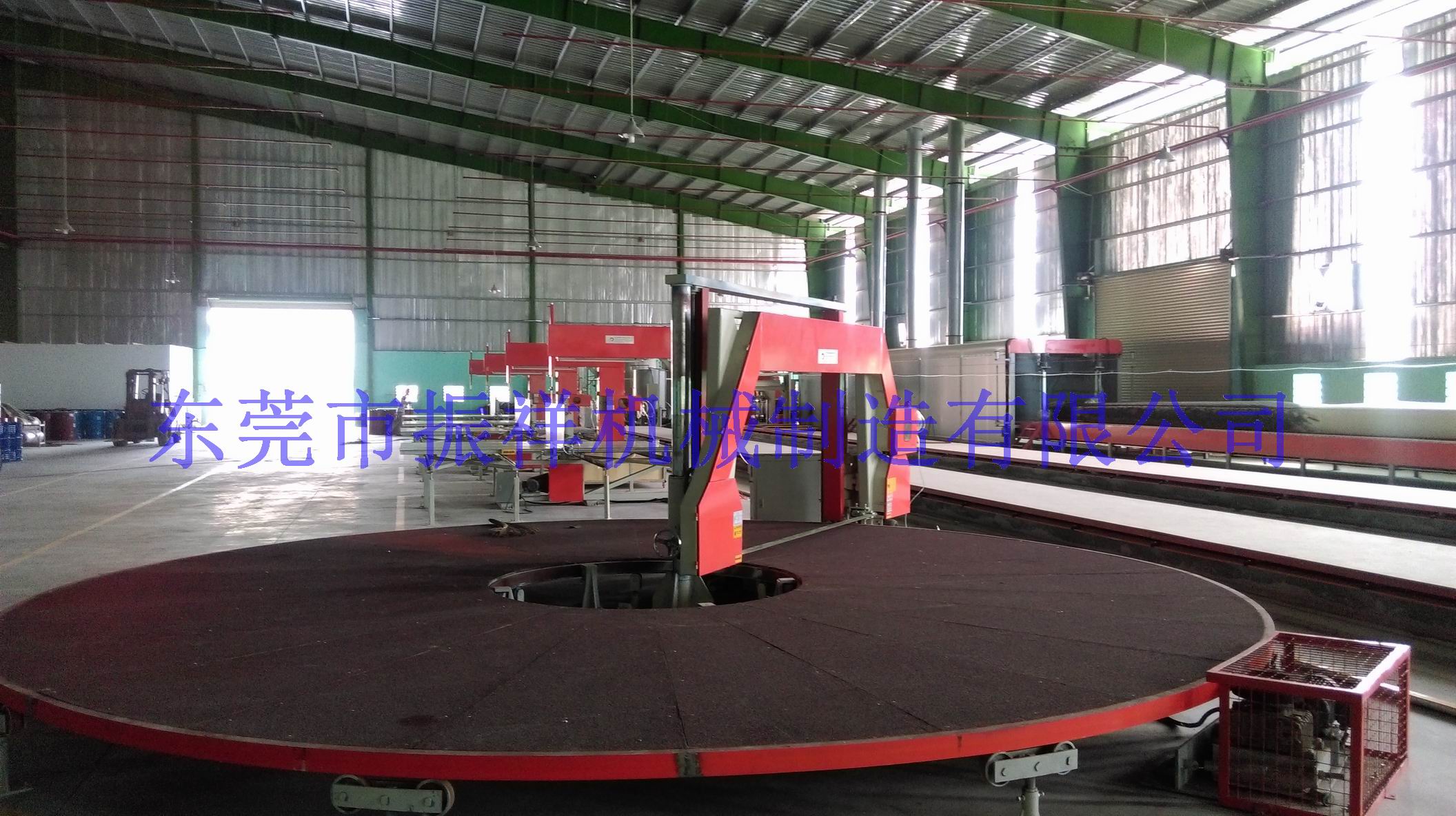

This machine is mainly used to put many block foam on the worktable and slices at the same time，it is fully automatic digital control, and setting the data as need cutting thickness by control box. The turning speed of worktable is adjustable, the cutting is accurate and the production efficiency is very high. (worktable can choose adding to vacuum equipment).
|
Model |
ZXYP-60 |
ZXYP-70 |
ZXYP-100 |
|
Cutting foam size |
W1.5*L2*H1.2m(4pcs) |
W1.5*L2*H1.2m(5pcs) |
W1.5*L2*H1.2m(8pcs) |
|
Cutting foam size max |
W1.5*L2*H1.2m(4pcs) |
W2.15*L3*H1.2m(3pcs) |
W2.15*L4.5*H1.2m(3pcs) |
|
Total power |
8.92Kw |
8.92Kw |
10.52Kw |
|
Worktable turning speed |
0~3.5r/min |
0~3.0r/min |
0~2.0r/min |
|
Blade length |
8940mm |
10000mm |
10240mm |
|
Worktable dia（￠）
|
￠6m |
￠7m |
￠10.5m |
|
Cutting thickness |
2~150mm |
||
|
Machine weight |
3300Kg |
3500Kg |
4500Kg |
|
Machine external size |
L6900*W6000*H2400mm |
L7900*W7000*H2400mm |
L11500*W6000*H2400mm |
